WebCodecs API

Why WebCodecs exists

There are other APIs which use media codecs internally, such as the MediaRecorder API and the WebRTC API, but these lack the low-level (per-frame) control required by some applications.

Previously, developers used WebAssembly ports of ffmpeg, but these lack true hardware acceleration capabilities, and are difficult to integrate with other key APIs like the File API for working with large files efficiently.

WebCodecs was designed to enable low-level, hardware-accelerated media processing, for applications such as high-performance streaming and video editing, which were not well served by the existing APIs.

Concepts

The WebCodecs API provides browser-native interfaces to represent raw video frames, encoded video frames, as well as raw and encoded audio.

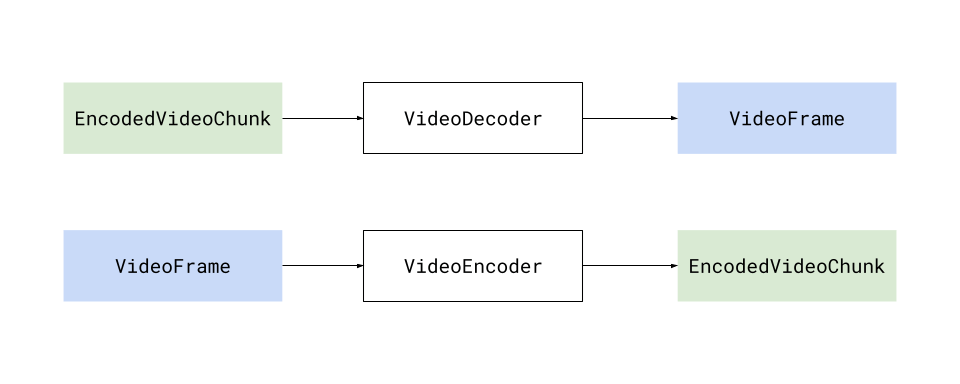

The WebCodecs API also introduces the VideoDecoder and VideoEncoder interfaces, which transform EncodedVideoChunk objects into VideoFrame objects and vice-versa.

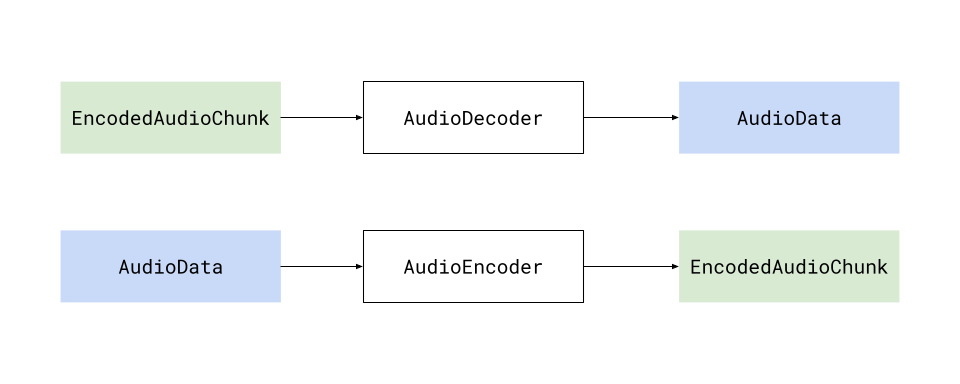

Likewise, the WebCodecs API also introduces the AudioDecoder and AudioEncoder interfaces, which transform EncodedAudioChunk objects into AudioData objects and vice-versa.

Generally there is a 1:1 correspondence between the raw and encoded versions of each media type. Decoding n EncodedVideoChunk objects will yield n VideoFrame objects (same with audio).

Video

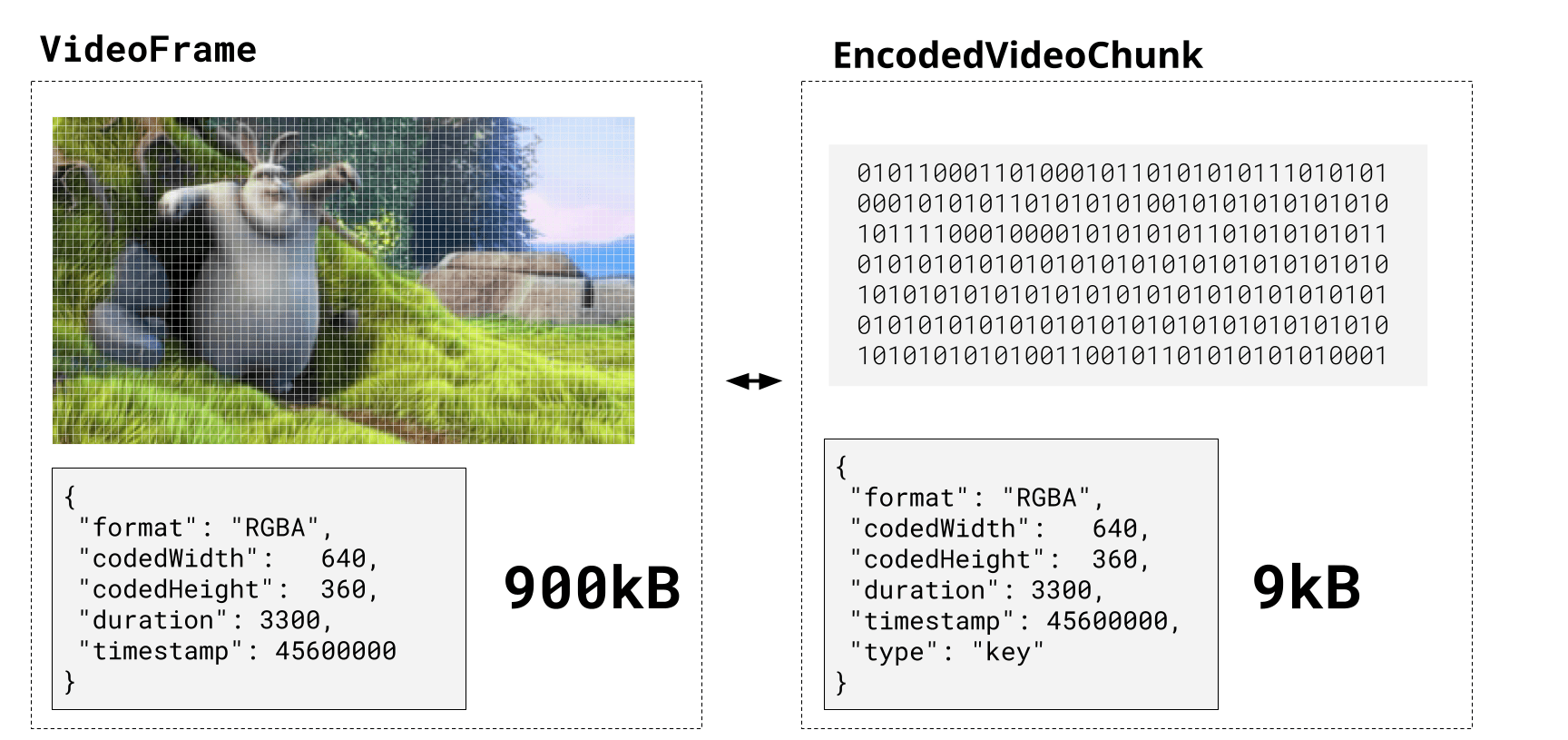

A VideoFrame represents a video frame, and is tied both to actual pixel data on the device's graphics memory, as well as metadata such as the timestamp and duration (in microseconds), format and resolution. A VideoFrame can be constructed from any image source, and can also be rendered to a Canvas using any of the canvas rendering methods.

EncodedVideoChunk represents the encoded version of the same frame, tied to binary data in regular memory and the same metadata, with one key additional field: type, which can be "key" or "delta", representing whether it corresponds to a key frame.

Audio

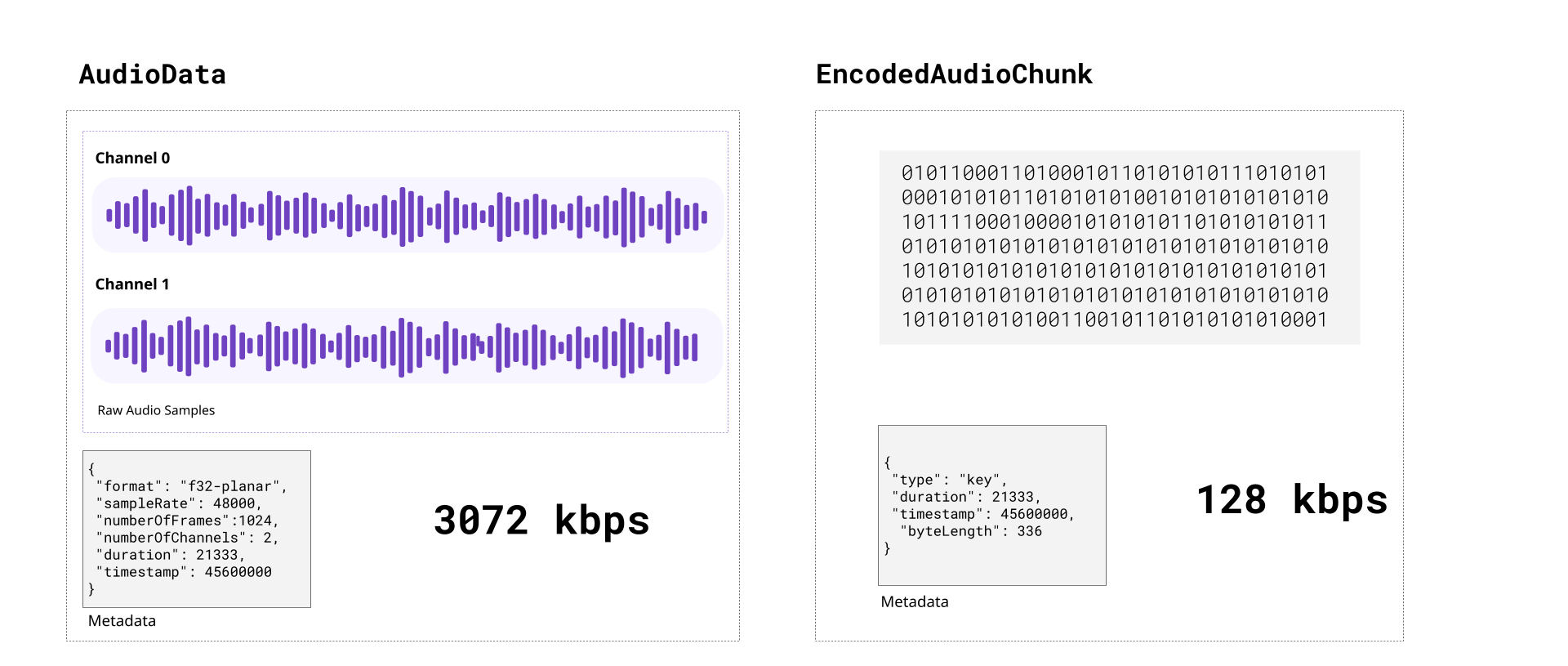

An AudioData object represents a number of individual audio samples (1024 is a typical number). Audio sample data can be extracted as a Float32Array via the copyTo method. There is no direct integration to the Web Audio API, however the extracted Float32Array samples can be copied directly into a AudioBuffer for playback.

Processing Model

The WebCodecs API uses an asynchronous processing model. Each instance of an encoder or decoder maintains an internal, independent processing queue. When queueing a substantial amount of work, it's important to keep this model in mind.

Methods named configure(), encode(), decode(), and flush() operate asynchronously by appending control messages to the end of the queue, while methods named reset() and close() synchronously abort all pending work and purge the processing queue. After reset(), more work may be queued following a call to configure(), but close() is a permanent operation.

The flush() method can be used to wait for the completion of all work that was pending at the time flush() was called. However, it should generally only be called once all desired work is queued — it is not intended to force progress at regular intervals. Calling it unnecessarily will affect encoder quality and cause decoders to require the next input to be a key frame.

Codecs

A codec is a specific algorithm for encoding (compressing) and decoding (decompressing) video and audio. There are several industry standard codecs for video, and a separate set of codecs for audio. Here are the major ones supported in WebCodecs:

Video Codecs

H.264 (AVC)

The most widely supported video codec. Most MP4 files use H.264.

VP9

Open source, developed by Google. Better compression than H.264. Commonly used on YouTube and in WebM files.

AV1

The newest open source codec, with better compression than VP9. Broad decoder support; hardware encoder support is still limited.

H.265 (HEVC)

Better compression than H.264, but with significant gaps in browser support outside of Apple platforms.

Audio Codecs

Opus

Open source, low-latency. The recommended choice for most WebCodecs audio encoding.

AAC

Widely supported. Common in MP4 files.

MP3

Broadly supported for decoding, but not available as an encoder in WebCodecs.

PCM

Uncompressed audio. No quality loss, but large file sizes.

The WebCodecs specification only supports a specific set of codecs, and individual devices and browsers may only support a subset of those. Encoders and decoders must be configured with fully specified codec strings (such as "vp09.00.40.08.00" for VP9 or "avc1.4d0034" for H.264) instead of ambiguous codec names like "vp9" or "h264". For a full list of codec strings and their browser support, see the Codec Support Table on WebCodecs Fundamentals, or the Codec selection guide for guidance on choosing the right codec string.

Muxing and Demuxing

The WebCodecs API only deals with encoding and decoding, with encoded chunks just representing binary data. It does not provide a built-in way to read EncodedVideoChunk objects from a video file, or write them to a playable video file.

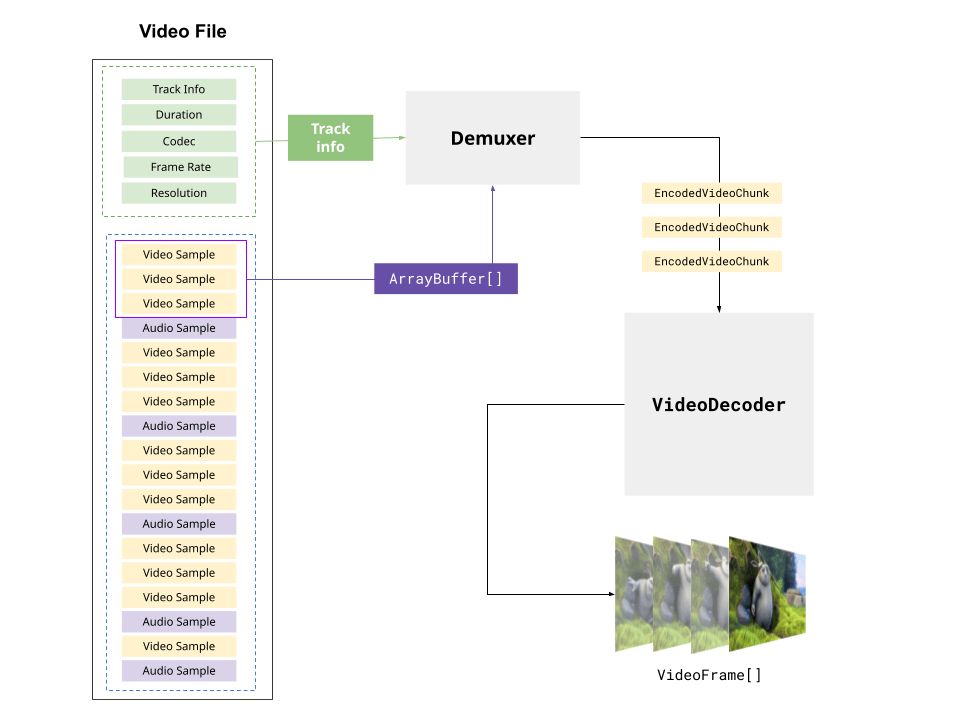

Reading encoded chunks from a video file is a completely different process called demuxing, and to fetch EncodedVideoChunk objects from a video file, you will need to use a demuxing library such as MediaBunny or web-demuxer.

These libraries will follow the video container specifications (e.g., webm, mp4) to extract the track data and byte offsets for each encoded chunk, and provide methods for extracting the actual chunks from the raw file.

Likewise, to write to a playable video file, you will need a muxing library, with MediaBunny being the primary option for muxing. Muxing libraries will handle formatting the binary encoded data, and placing it in the correct byte position in the output file stream according to the container specification, so that the output video is playable.

You can find more information on muxing and demuxing in the Muxing and Demuxing guide on WebCodecs Fundamentals.

Guides

Video processing concepts

A brief primer on video processing, including codecs and containers, muxing and demuxing, that covers conceptual information to understand how the WebCodecs API implements these concepts.

Using the WebCodecs API

In depth guide to how to actually use the WebCodecs API, including how to instantiate and configure encoders and decoders, how to create and consume video frames, and how to extract samples from AudioData.

Codec selection

The WebCodecs API requires codec strings — precise identifiers that specify not just the codec family but also the profile, level, and other parameters. This guide explains how codec strings work and how to choose the right codec for common use cases.

Interfaces

AudioDecoder

Decodes EncodedAudioChunk objects.

VideoDecoder

Decodes EncodedVideoChunk objects.

AudioEncoder

Encodes AudioData objects.

VideoEncoder

Encodes VideoFrame objects.

EncodedAudioChunk

Represents codec-specific encoded audio bytes.

EncodedVideoChunk

Represents codec-specific encoded video bytes.

AudioData

Represents unencoded audio data.

VideoFrame

Represents a frame of unencoded video data.

VideoColorSpace

Represents the color space of a video frame.

ImageDecoder

Unpacks and decodes image data, giving access to the sequence of frames in an animated image.

ImageTrackList

Represents the list of tracks available in the image.

ImageTrack

Represents an individual image track.

Examples

The basic instantiation of a VideoEncoder looks like this, where you define the output callback where EncodedVideoChunk objects will be returned.

const encoder = new VideoEncoder({
  output(chunk, meta) {
    // Do something with chunk, typically send to muxing library
  },
  error(e) {
    console.warn(e);
  },
});

You then need to configure the encoder with the codec parameter and various other fields.

encoder.configure({
  codec: "vp09.00.40.08.00", // See codec selection guide
  width: 1280,
  height: 720,
  bitrate: 1_000_000, // 1 Mbps
  framerate: 25,
});

You can then start encoding frames to the encoder. You can construct a VideoFrame from a Canvas

for (let i = 0; i < 60; i++) {
  const frame = new VideoFrame(canvas, { timestamp: (i * 1e6) / 30 }); //30 fps, in microseconds
  encoder.encode(frame, { keyFrame: i % 60 === 0 });
}

See Using the WebCodecs API for more examples.
